Sanding might seem simple, just rub paper on wood until it feels smooth. But woodworking abrasives work on a much deeper level. Every sheet of sandpaper is a field of tiny cutting tools, carving thousands of microscopic grooves with each stroke.
The real magic happens when you move through the right grit sequence, applying proper pressure and technique. Done correctly, this process transforms rough lumber into a surface ready for stain, paint, or clear finish.
In this guide, we’ll break down the science of abrasives and show you how to use them for professional results.
Quick Summary: How Do Woodworking Abrasives Work?
- Woodworking abrasives create micro-cuts on wood surfaces through friction
- The grit progression sequence (40-320+) is essential for achieving professional results
- Proper technique involves consistent pressure, direction, and inspection between grits

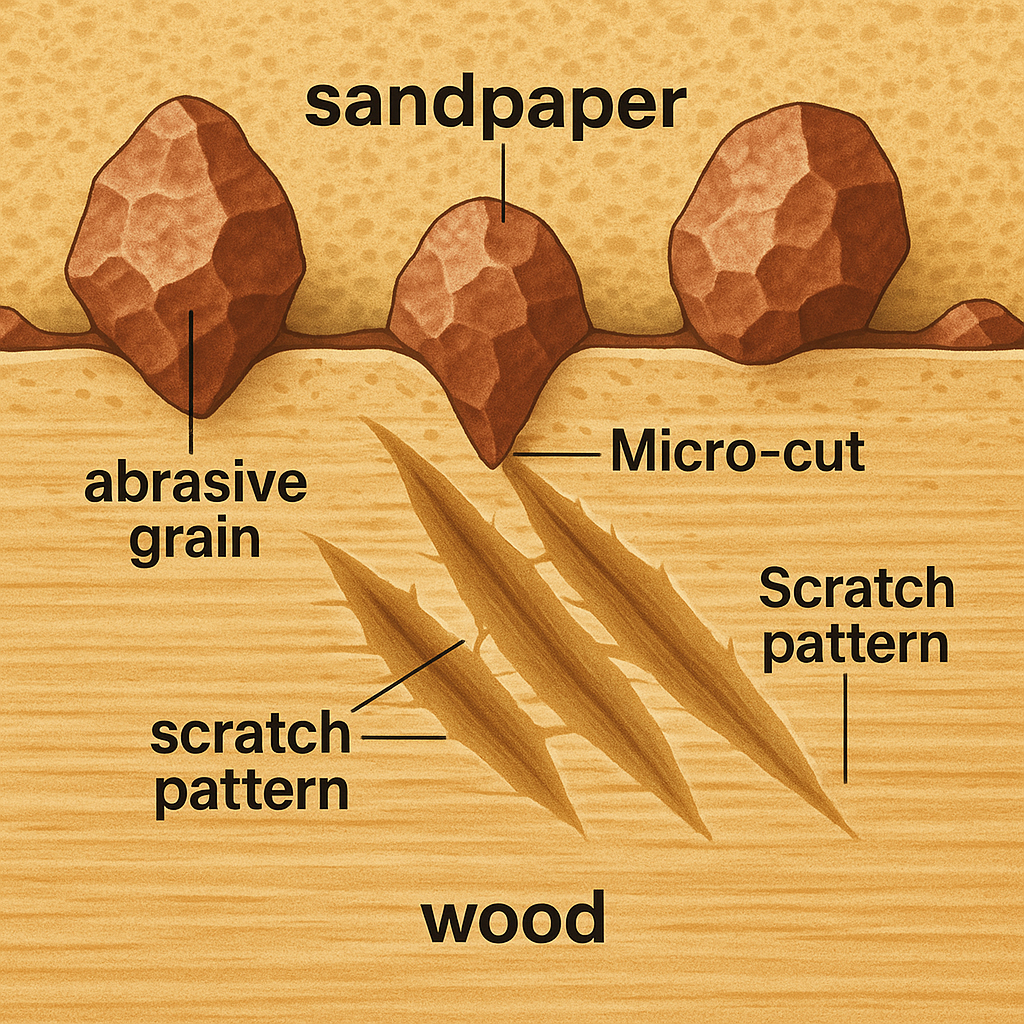

The Science of Material Removal
Woodworking abrasives function through a surprisingly simple yet effective mechanical process. When you apply an abrasive to wood, the tiny, sharp particles on its surface create microscopic cuts. These particles, often made of materials like aluminum oxide, silicon carbide, or garnet, act as thousands of tiny cutting tools. Each particle removes a small amount of wood fiber as it moves across the surface.
The cutting action depends on three key factors: the hardness of the abrasive particles, the pressure applied, and the speed of movement. Harder abrasives like aluminum oxide can cut more aggressively than softer ones like garnet. When you increase pressure or speed, the rate of material removal increases. This explains why power sanders work faster than hand sanding – they combine consistent pressure with high speed to maximize cutting efficiency.
On a microscopic level, what appears to be a smooth sanding motion is actually a complex interaction. The abrasive particles don’t just slice cleanly through wood fibers – they tear, scratch, and break them. This creates a textured surface consisting of countless tiny scratches. As you progress to finer grits, these scratches become smaller and less visible, eventually resulting in what we perceive as a smooth surface.

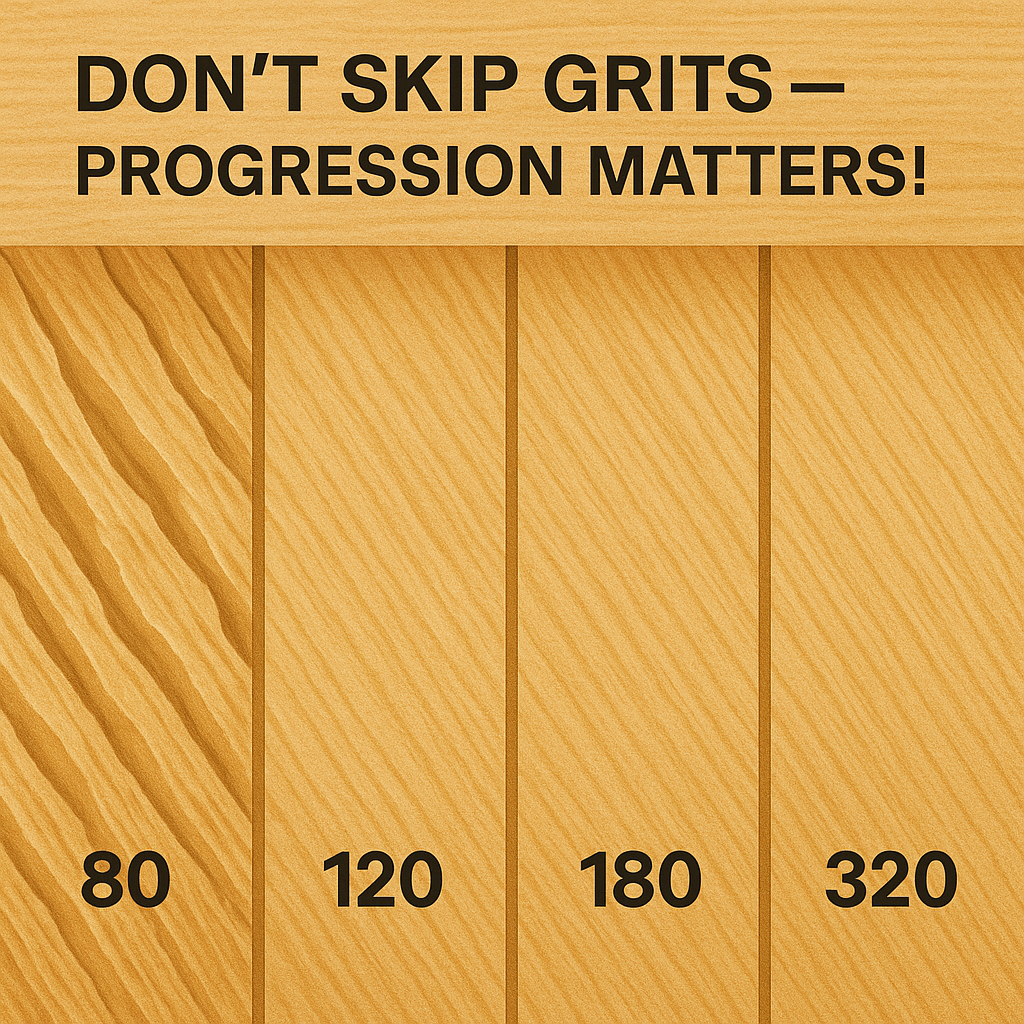

The Critical Grit Sequence
The progression of grits forms the backbone of effective wood sanding. Starting with coarse grits (40-80) allows for quick removal of material and leveling of the surface. Medium grits (100-150) eliminate the deeper scratches left by coarser grits. Fine grits (180-220) prepare the surface for finishing. Extra-fine grits (320 and above) create ultra-smooth surfaces for high-gloss finishes.
A proper sanding sequence might look like this:
- 80 grit: Initial surface preparation and removal of major defects
- 120 grit: Smoothing and removing scratches from the 80 grit
- 180 grit: Final smoothing before finishing
- 220+ grit: Optional for extra-smooth finishes or between finish coats
Research from the Wood Products Industry Technical Association shows that skipping more than one grit size in your sequence can leave deeper scratches that remain visible even after finer sanding. This creates what professionals call “ghost scratches” that often only become visible after staining or finishing.
For hardwoods like oak or maple, starting with a coarser grit (like 60 or 80) is often necessary. Softer woods like pine might only require starting at 100 or 120 grit. The key is observing the wood’s response to each grit before moving to the next finer option.
Abrasive Selection and Performance Factors
The abrasive material significantly impacts performance. Aluminum oxide, the most common woodworking abrasive, offers durability and versatility across most wood types. Silicon carbide cuts more aggressively but wears faster, making it ideal for hardwoods and between-finish coats. Ceramic abrasives, though more expensive, last significantly longer and maintain their cutting ability better over time.
The backing material also plays a crucial role. Paper backings (designated as A, C, D, E, and F weights) offer different levels of flexibility and durability. Cloth backings provide greater durability for power sanding operations. Foam backings conform to contoured surfaces, making them ideal for profiles and moldings.
For professional woodworkers, selecting the right abrasive involves considering all these factors based on the specific project requirements.
The Physics of Surface Smoothing
When you sand wood, you’re actually creating an entirely new surface structure. This process involves three distinct phases:
- Cutting Phase: The abrasive particles slice through wood fibers, creating a sawtooth pattern of peaks and valleys.
- Leveling Phase: Continued sanding with the same grit begins to level these peaks.
- Polishing Phase: As you progress to finer grits, the height difference between peaks and valleys diminishes.
The wood’s cell structure also affects this process. Hardwoods with dense, tight grain structures generally sand more uniformly than softwoods. Softwoods with alternating bands of early wood (spring growth) and late wood (summer growth) can develop an uneven surface during sanding because the softer early wood removes faster than the harder late wood.
When examining a freshly sanded surface under a microscope at 100x magnification, you would see that what appears smooth to the naked eye is actually a terrain of microscopic scratches. These scratches become progressively finer as you move through the grit sequence. A surface sanded to 320 grit has scratches approximately 30-40 microns in depth, while one sanded to 80 grit has scratches around 180-200 microns deep.

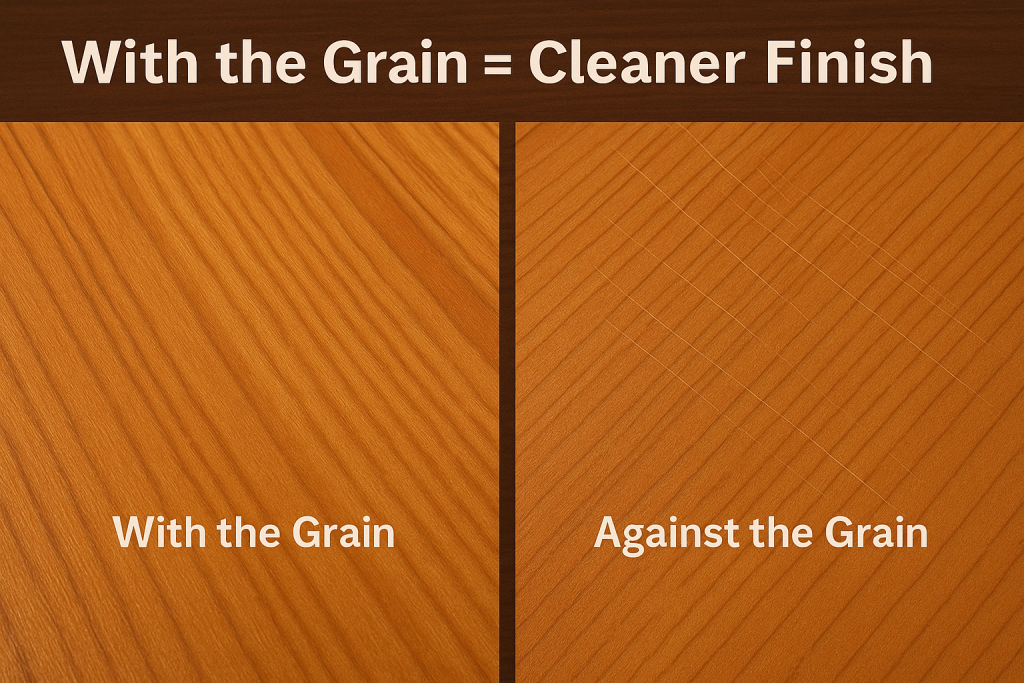

Understanding Scratch Patterns and Direction
The direction of sanding significantly affects the final appearance. Sanding with the grain aligns the scratches with the wood’s natural structure, making them less visible. Sanding against or across the grain creates scratches that intersect the wood grain, making them more noticeable, especially after finishing.
For flat surfaces, maintaining consistent sanding direction becomes particularly important as you progress to finer grits. For the final grits (180 and above), professional woodworkers strictly adhere to with-grain sanding to ensure optimal results.
Practical Application Techniques
Effective abrasive use requires proper technique beyond just choosing the right materials. Consistent pressure distribution ensures even material removal. Too much pressure generates excessive heat, which can cause the abrasive to wear prematurely and potentially damage the wood surface.
Hand sanding benefits from using sanding blocks or pads to distribute pressure evenly. For power sanding, let the tool’s weight provide much of the necessary pressure. Moving at a steady pace prevents creating deeper scratches in areas where you linger too long.
Between each grit change, thorough dust removal is essential. Dust particles from previous grits can become trapped in the new abrasive, creating unexpected deeper scratches. Professional woodworkers use compressed air, tack cloths, or vacuums to thoroughly clean surfaces between grits.
A practical approach for checking your sanding progress is to wipe the surface with mineral spirits or denatured alcohol (which evaporates without raising the grain). This temporarily simulates how the wood will look when finished and reveals scratches or uneven areas that need additional attention.
For optimal results, professional woodworkers recommend:
- Keeping separate sandpaper for each type of wood to prevent cross-contamination
- Marking sanded areas with pencil lines that get sanded away to ensure complete coverage
- Using proper lighting techniques (low-angle raking light) to inspect surfaces between grits
- Maintaining consistent technique throughout the entire project for uniform results
Final Thoughts: How Do Woodworking Abrasives Work? The Science of Sanding
Understanding the science behind woodworking abrasives turns sanding from a chore into a precise, predictable process. Every sheet of sandpaper is more than just paper and grit, it’s a finely engineered tool designed to cut, level, and refine wood at the microscopic level.
By following the proper grit progression, maintaining consistent technique, and choosing the right abrasive materials, you ensure smooth, flawless surfaces that highlight the beauty of your projects. The difference between amateur results and professional finishes often comes down to sanding, and now you know exactly how to get it right.
For a deeper dive, read our Ultimate Guide to Woodworking Abrasives
